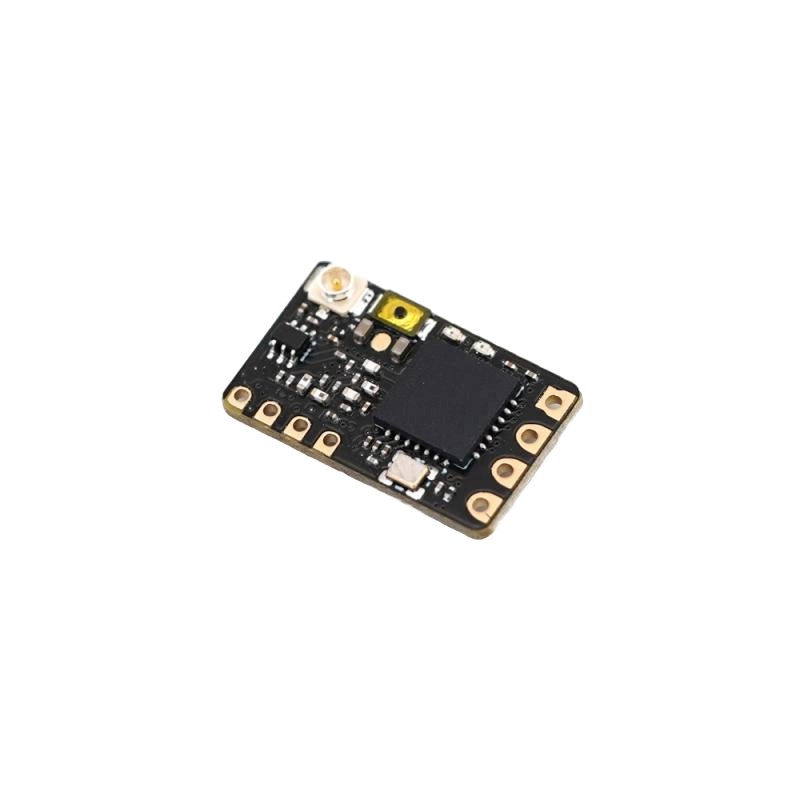

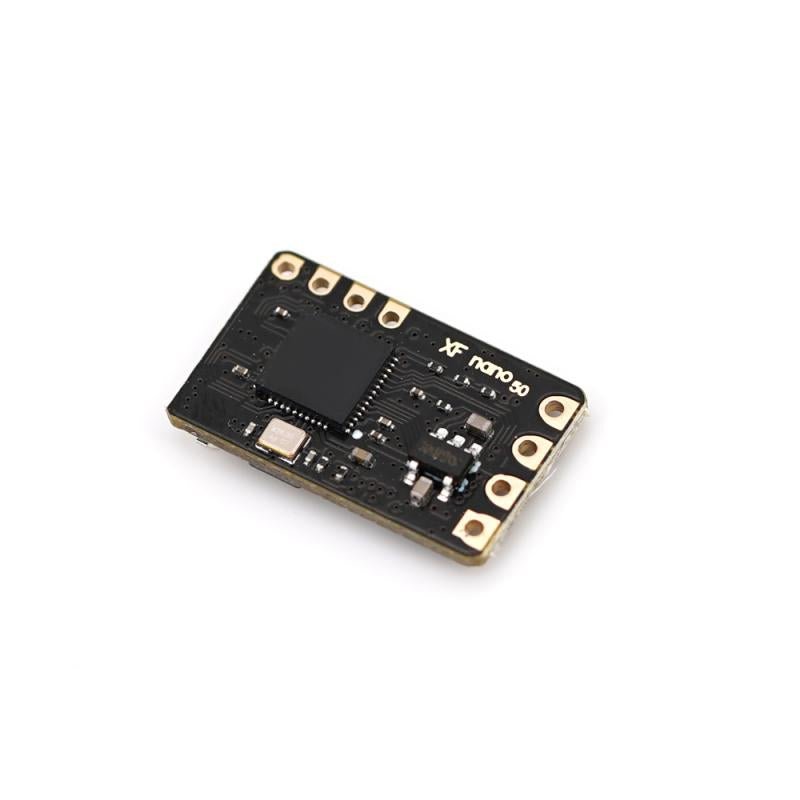

TBS Crossfire Nano RX (SE)

TBS is stepping up the Long Range / UHF game, with no competition in sight! With the TBS Crossfire Nano RX we condense 2 years of engineering experience, listening to our customer requirements, and pushing ourselves to the maximum (or in this case, the minimum!). The end result is a full range receiver, at the smallest size of any receiver in the industry (yes, it's smaller than the XM+).

• Please use with Crossfire firmware V6.10 or above.

Specifications

• Signal format: CRSF
• Frequency Min: 868 MHz
• Frequency Max: 915 MHz
• Input Voltage Min: 3.3 V
• Input Voltage Max: 8.4 V
• Range: 40 km
• Channels: 12

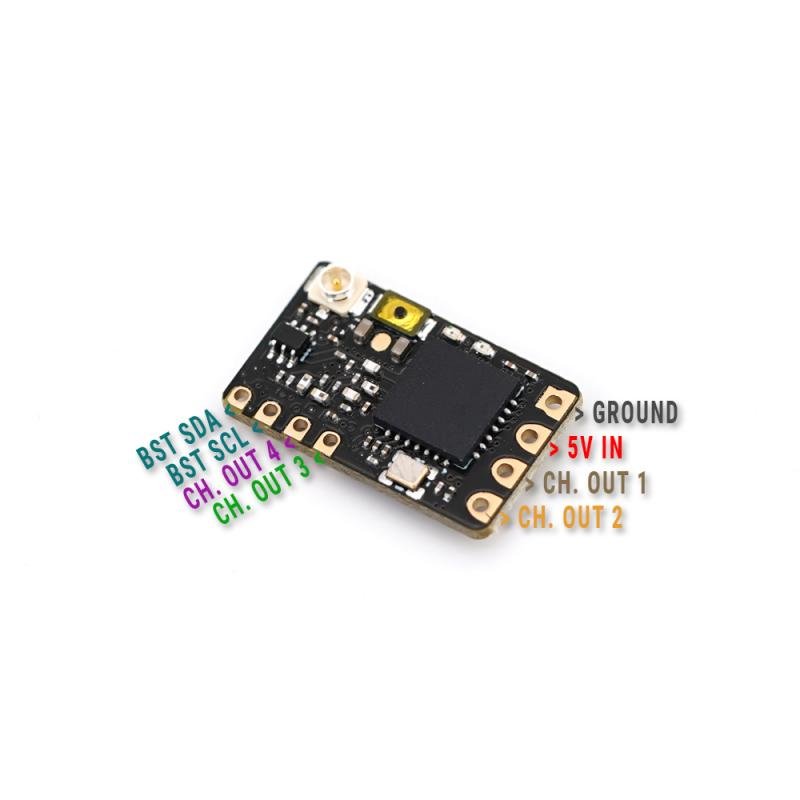

• Output formats: PPM, SBUS, CRSF, PWM
• Weight: 0.5 g
• Height: 11 mm
• Width: 18 mm
• Length: 11 mm

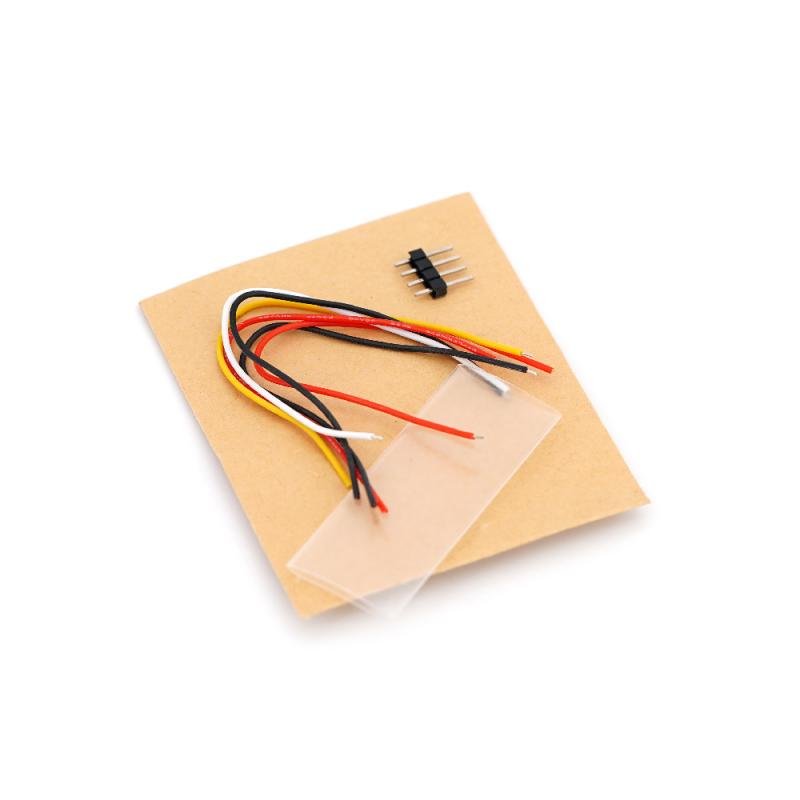

Includes

• 1x TBS Crossfire Nano Receiver
• 1x TBS Crossfire Immortal T V2 Antenna
• 1x Spare shrink tube
• 6x 30awg silicon connection wires (2 black, 2 red, 1 white, 1 yellow)
• 1 x pin header 1x4

Downloads

• TBS Crossfire - RED Declaration of Conformity
• Quickstart Guide / Manual
• TBS Crossfire Nano RX - FCC Certification
